Kunpeng Family
VMC Series
Vertical 5-axis machining centers with trunnion-type table for precise and efficient production.
The VMC Series combines rigid gantry design, high-torque direct-drive technology and precise trunnion-type rotary tables in one vertical 5-axis machining platform. Designed for stable accuracy, dynamic performance and efficient machining, the series supports demanding applications in aerospace, automotive, machinery manufacturing and advanced industrial production.
VMC-C100H(MT)
VMC-C80H(MT)
VMC-C70D
Control Systems
Siemens and Heidenhain CNC control options.
TOPNC machines can be configured with Siemens or Heidenhain control systems, depending on machine type, application requirements and customer production standards.
01
Siemens CNC
Reliable control technology for stable operation and demanding production environments.
02
Heidenhain CNC
Precision-focused control for complex milling, contours and high-accuracy workflows.
03
Configured by Application
Control system selection depends on machine type, process and customer requirements.
Model Range
Three VMC configurations for vertical 5-axis machining and efficient part production.
The VMC Series includes vertical 5-axis configurations with trunnion-type table concepts for different workpiece sizes, table loads and production strategies. From high-capacity single-table machining to double-spindle production, the series is designed to support stable precision, high productivity and reliable process performance.
Large trunnion configuration
VMC-C100H(MT)
Vertical 5-axis machining center with trunnion-type table for large workpieces, high table load and stable precision machining.
1100 / 1100 / 800 mm
X/Y/Z-axis travel
1000 mm
Table size
1500 kg
Table load
Compact trunnion configuration
VMC-C80H(MT)
Compact vertical 5-axis machining center with trunnion-type table for efficient machining of smaller and midsized precision components.
800 / 800 / 550 mm
X/Y/Z-axis travel
800 mm
Table size
12000 / 16000 rpm
Spindle speed
Double-spindle configuration
VMC-C70D
Vertical 5-axis double-spindle machining center with dual-station trunnion-type table for efficient mass production and finishing of complex parts.
2 × 40 pockets
Tool magazine capacity
2 × 250 kg
Max. workpiece weight
15000 rpm
Spindle speed
01

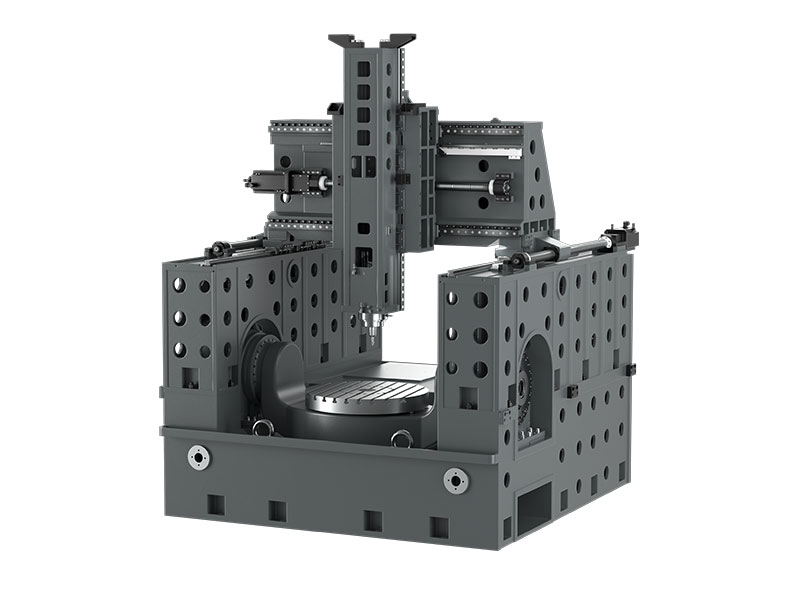

Rigid Gantry Design

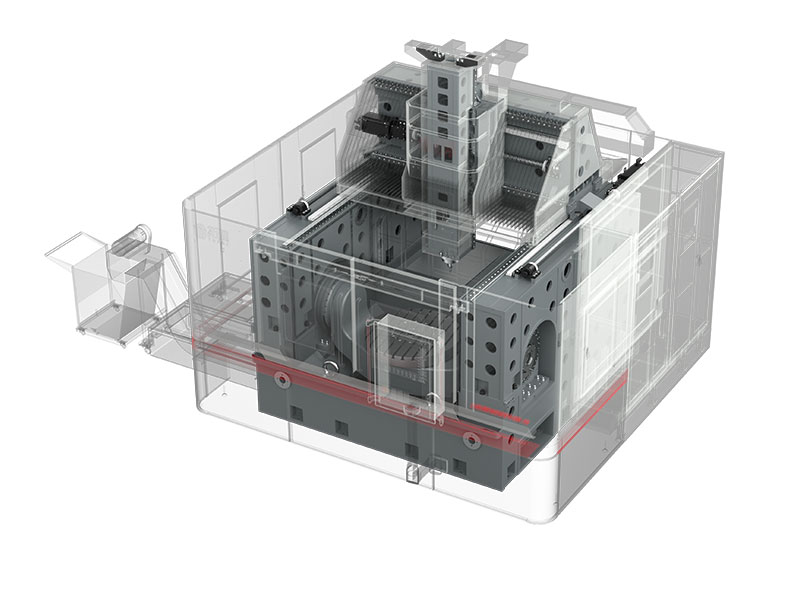

The VMC Series uses a rigid gantry-style machine concept to support stable machining behavior, high structural rigidity and reliable precision during demanding 5-axis processes.
02

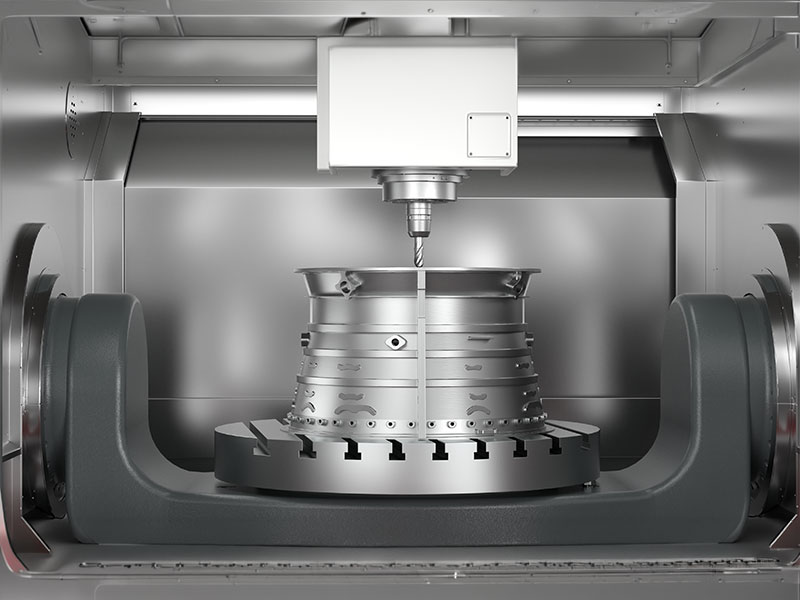

Trunnion-Type Machining
High-torque direct-drive and precise trunnion-type rotary tables support dynamic 5-axis machining for complex workpieces and demanding component geometries.
03
Stable Accuracy
The machine concept is designed for high stability, dynamic accuracy and consistent machining quality, with RTCP dynamic accuracy specified up to 0.02 mm.
04
Efficient Production
Single-table and double-spindle configurations allow users to select the right setup for precision machining, high-efficiency production and complex part finishing.
Technical Data
Technical comparison across the VMC Series.
The table below compares the key technical data of the VMC-C100H(MT), VMC-C80H(MT) and VMC-C70D. It provides a clear basis for evaluating the right configuration according to axis travel, table size, table load, spindle speed, tool capacity and production requirements.
| Parameter | VMC-C100H(MT) | VMC-C80H(MT) | VMC-C70D |
|---|---|---|---|
| X/Y/Z-axis travel | 1100/1100/800 mm | 800/800/550 mm | 700/100/600 mm |
| Table size | 1000 mm | 800 mm | |
| Table load | 1500 kg | 1000 kg | |
| Spindle spacing | 700 mm | ||
| Max. workpiece weight | 2×250 kg | ||
| Max. workpiece diameter | Φ699 mm | ||
| Max. workpiece height | 500 mm | ||
| Spindle speed | 12000 rpm | 12000/16000 rpm | 15000 rpm |
| Tool magazine capacity | 40 pockets | 40 pockets | 2×40 pockets |
| Weight | 30 t | 26 t | 25 t |
| Machine size | 6300×6100×5200 mm | 4700×4200×4000 mm | 4000×5900×4200 mm |
Photo Gallery
Impressions from the VMC Series in different machining and product contexts.

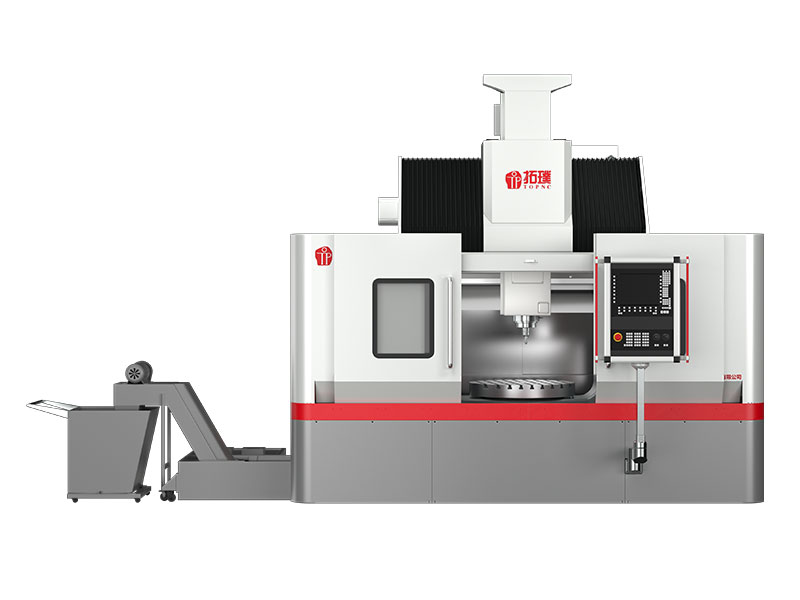

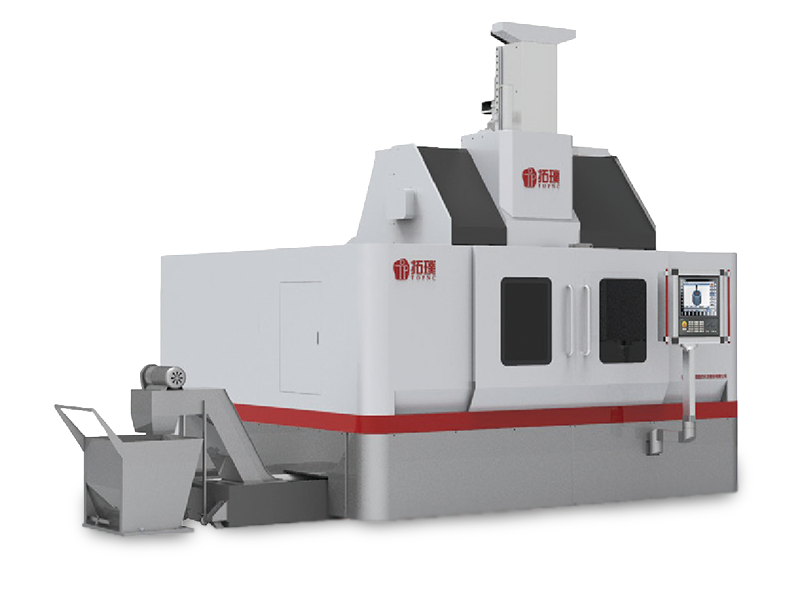

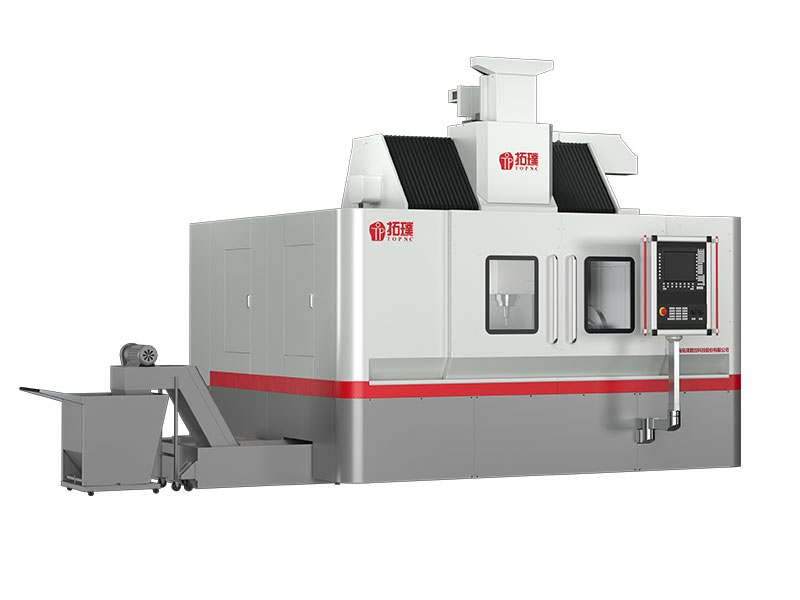

This gallery presents a mixed visual selection from the VMC Series, including machine views, machining details, component examples and application-related impressions. The images are not separated by model type and provide a broader impression of the series as a whole.
